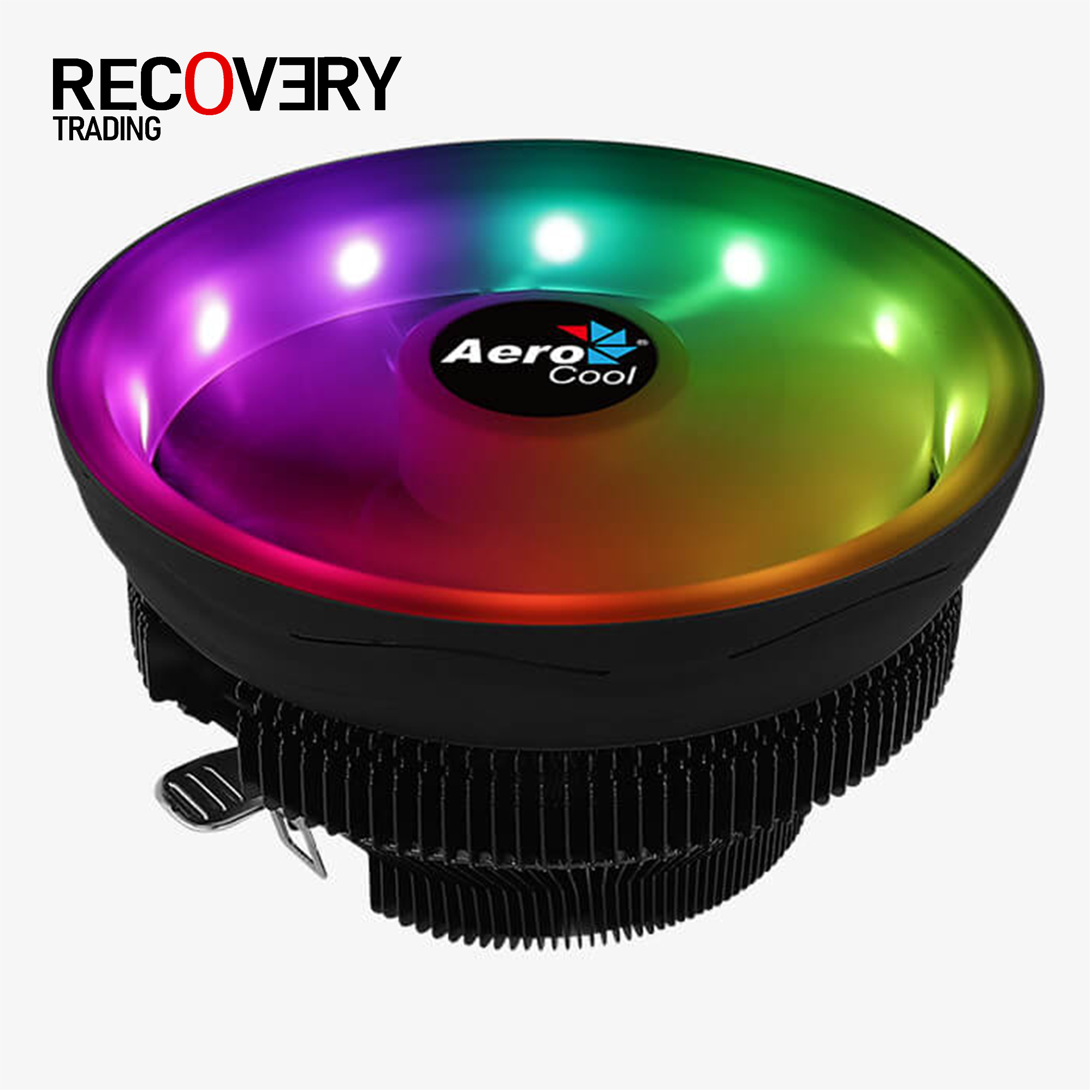

AeroCool Core Plus ARGB CPU Air Cooler – 110W TDP, Intel LGA1700 & AMD AM4/AM5

Overview

The AeroCool Core Plus ARGB is a compact CPU air cooler designed to provide efficient cooling, low-noise operation, and customizable ARGB lighting for modern desktop PC builds. Its Top Down Cooling design directs airflow through the aluminum heatsink while also helping circulate air around nearby motherboard components.

The cooler supports processors with a Thermal Design Power of up to 110W, making it suitable for compatible mainstream gaming, productivity, and everyday desktop systems. In addition, its compact design provides broad compatibility with many PC cases where larger tower-style CPU coolers may not be suitable.

For cooling, the Core Plus features a 120mm PWM high-pressure fan with an operating speed of 600 to 1800 RPM. The fan can deliver up to 51.3 CFM of airflow while maintaining a rated noise range between 14.5 and 25.4 dBA.

The AeroCool Core Plus also features Addressable RGB lighting. Users can synchronize the lighting with compatible motherboard ecosystems, including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion.

Overall, the AeroCool Core Plus provides a practical combination of cooling performance, compact dimensions, PWM fan control, and ARGB lighting for compatible Intel and AMD processors.

Cooling Performance – Up to 110W TDP

• TDP Support Up to 110W
• Top Down Cooling Design
• High-Efficiency Aluminum Fins
• Black-Coated Heatsink Fins
• 120mm High-Pressure Fan
• PWM Fan Control

The AeroCool Core Plus is designed to handle processors with a TDP of up to 110W. Its Top Down Cooling configuration directs airflow through the heatsink to help dissipate heat generated by the processor.

AeroCool uses upgraded high-efficiency aluminum fins to improve thermal performance. In addition, the black coating on the heatsink fins is designed to improve heat dissipation efficiency.

The Top Down design can also provide greater compatibility with compact PC cases compared with some larger tower-style cooling solutions.

120mm PWM Cooling Fan

• 120 x 120 x 25mm Fan
• 600 – 1800 RPM Fan Speed
• 21.8 – 51.3 CFM Airflow
• 0.53 – 1.41 mm-H2O Air Pressure
• 14.5 – 25.4 dBA Noise Level
• PWM 4-Pin Connector
• 60,000 Hours MTBF

The AeroCool Core Plus uses a 120mm high-pressure cooling fan. Its speed ranges from 600 to 1800 RPM, allowing the cooling performance to adjust according to system requirements.

The fan provides airflow ranging from 21.8 to 51.3 CFM. Meanwhile, the rated noise level ranges between 14.5 and 25.4 dBA.

A 4-pin PWM connector allows compatible motherboards to automatically control fan speed based on CPU temperature and system conditions.

Addressable RGB Lighting

• Built-In RGB LED Ring
• Translucent Fan Blades
• Addressable RGB Compatibility
• Up to 16.8 Million Colors
• ASUS Aura Sync Compatible
• MSI Mystic Light Sync Compatible
• Gigabyte RGB Fusion Compatible

The AeroCool Core Plus combines cooling performance with customizable lighting. An integrated RGB LED ring surrounds the fan, while translucent fan blades help distribute the lighting effect.

Users can access up to 16.8 million colors when connecting the cooler to a compatible Addressable RGB motherboard or supported ARGB hub.

This makes the Core Plus suitable for gaming PCs and custom builds where synchronized RGB lighting is an important part of the overall system design.

Intel and AMD Socket Compatibility

The AeroCool Core Plus supports a wide range of Intel and AMD CPU sockets.

Intel Compatibility:

• LGA 1700
• LGA 1200
• LGA 115X
• LGA 775

AMD Compatibility:

• AM5
• AM4
• AM3+
• AM3
• AM2+
• AM2
• FM2
• FM1

For LGA1700 and AM5 systems, AeroCool recommends checking that the required compatible mounting bracket is listed on the product packaging. The cooler does not support Intel LGA 2011 or LGA 2066.

Ideal For

• Gaming PCs
• Mainstream Gaming Builds
• AMD AM5 Systems
• AMD AM4 Systems
• Intel LGA1700 Systems
• Compact PC Builds
• ARGB Gaming Setups
• Everyday Desktop PCs
• Productivity Systems
• CPU Upgrades

Quick Technical Summary

Brand: AeroCool
Model: Core Plus
Cooler Type: CPU Air Cooler
Cooling Design: Top Down
Maximum TDP: Up to 110W
Base Material: Aluminum
Cooler Dimensions: 136 x 136 x 83mm
Fan Size: 120 x 120 x 25mm
Fan Speed: 600 – 1800 RPM
Airflow: 21.8 – 51.3 CFM
Air Pressure: 0.53 – 1.41 mm-H2O
Noise Level: 14.5 – 25.4 dBA
Fan Connector: 4-Pin PWM
MTBF: 60,000 Hours
Lighting: Addressable RGB
Intel Support: LGA 1700 / 1200 / 115X / 775
AMD Support: AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
Primary Use: Gaming and Everyday Desktop PCs
