Description

APNX LC1-D 360 High-Performance LCD 360mm Liquid CPU Cooler – White

Overview

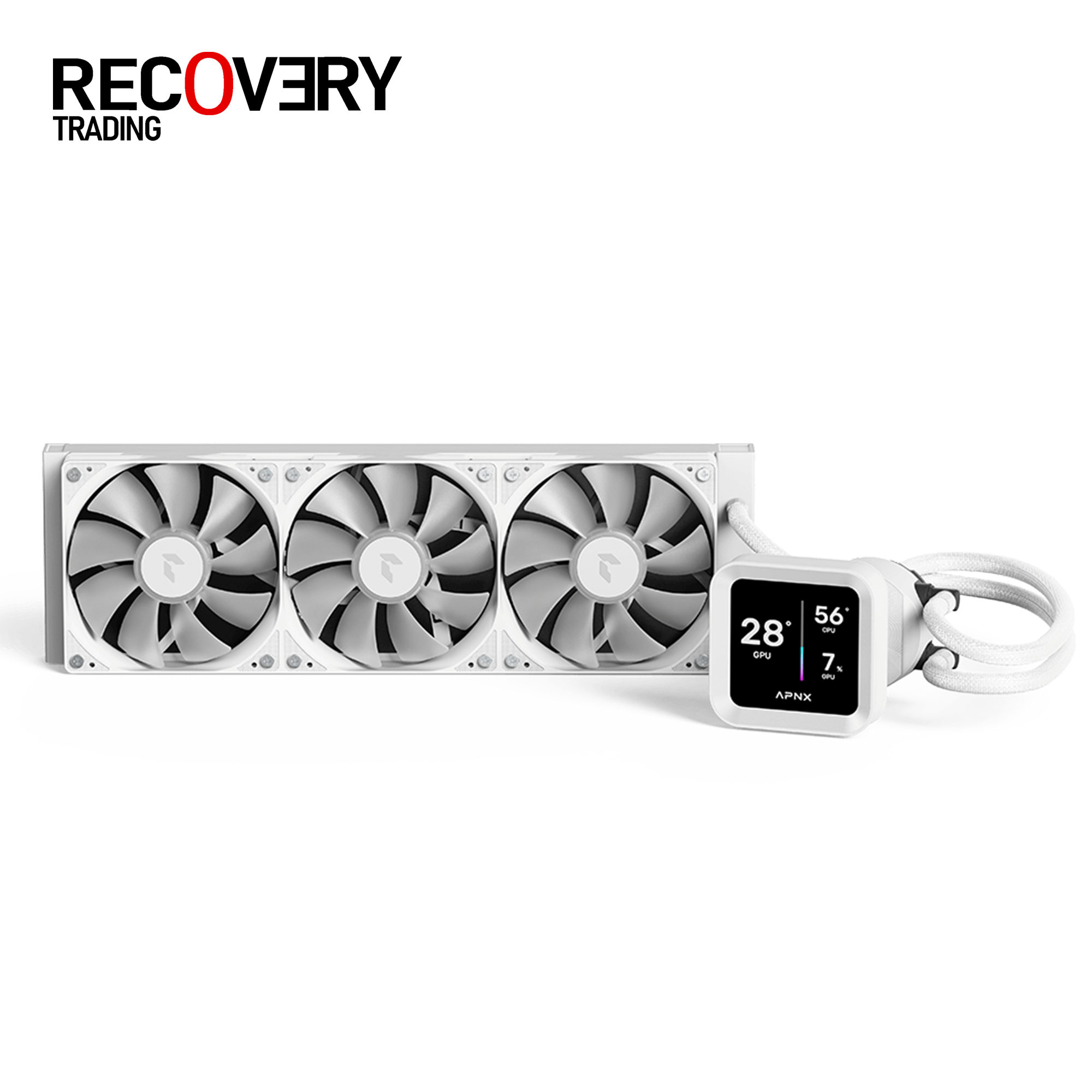

The APNX LC1-D 360 White is a high-performance 360mm all-in-one liquid CPU cooler designed for powerful gaming PCs, content creation systems, and demanding workstation builds. It combines advanced liquid cooling performance with a large customizable IPS LCD display and integrated ARGB lighting.

At the center of the cooler is a 3.95-inch IPS LCD display with a 480 x 480 resolution. The screen can display real-time system information, including CPU temperature, system load, and fan speed. In addition, users can upload custom media such as MP4 videos, JPEG images, PNG files, BMP images, and animated GIFs through the APNX Control Center software.

For thermal performance, the LC1-D 360 features a pure copper water block with a micro-channel design. It is paired with a large 360mm aluminum alloy radiator and a high-performance pump operating at speeds of up to 3000 RPM. APNX rates the cooling solution for thermal loads up to 320W TDP.

The cooler also features a single-frame 360mm ARGB fan system designed to simplify installation and cable management. Overall, the APNX LC1-D 360 White combines powerful CPU cooling, customizable LCD functionality, ARGB lighting, and a clean white aesthetic for premium PC builds.

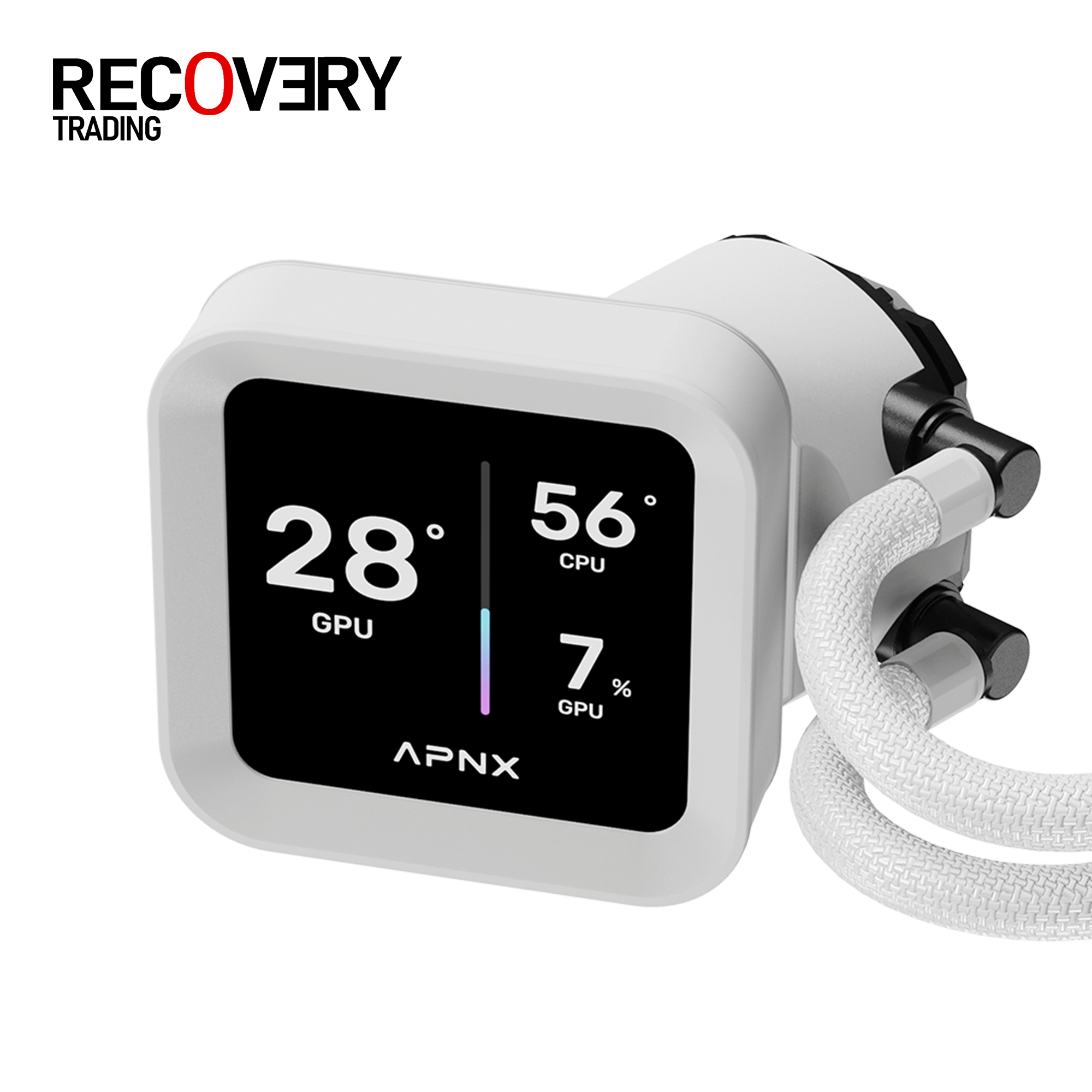

3.95-Inch Customizable IPS LCD Display

• 3.95-Inch IPS LCD Screen
• 480 x 480 Pixel Resolution
• 350 cd/m² Brightness
• 20Hz Refresh Rate
• Software-Adjustable Orientation
• Adjustable Pump Head Angle
• Real-Time System Monitoring
• Custom Image and Video Support

One of the main features of the APNX LC1-D 360 is its large 3.95-inch IPS LCD display. The screen provides a clear visual interface for displaying system information or personalized content.

Through the APNX Control Center software, users can monitor important system information such as CPU temperature, system load, and fan speed.

Furthermore, the display supports custom media. Users can upload MP4 videos, JPEG images, PNG files, BMP images, and animated GIFs. This allows the cooler to become a customizable visual centerpiece inside a gaming PC.

The orientation of the display can also be adjusted through software, while the adjustable pump head angle helps users achieve the best viewing position for their specific PC configuration.

High-Performance 360mm Liquid Cooling

• 360mm Liquid Cooling System
• Up to 320W TDP Rating
• Pure Copper Water Block
• Micro-Channel Cooling Design
• Corrosion-Resistant Aluminum Alloy Radiator
• High-Performance Pump
• Designed for Demanding CPUs

The APNX LC1-D 360 is designed to provide strong thermal performance for high-performance desktop processors.

Its water block uses pure copper for excellent thermal conductivity. In addition, the internal micro-channel structure helps transfer heat efficiently from the processor into the liquid cooling system.

The large 394 x 120 x 27mm radiator provides an extensive surface area for heat dissipation. APNX rates the LC1-D 360 for thermal loads up to 320W TDP, making it suitable for demanding gaming, rendering, content creation, and productivity workloads.

High-Performance Pump

• Pump Speed: 600 – 3000 RPM ±10%
• 12V Rated Voltage
• 4.2W Rated Power
• 18 dB(A) Pump Noise
• Ceramic Bearing

The LC1-D 360 uses a high-performance pump designed to maintain efficient coolant circulation throughout the cooling system.

Its operating speed ranges from 600 to 3000 RPM, allowing the cooling system to provide effective liquid circulation based on system requirements.

The pump uses a ceramic bearing and has a rated noise level of 18 dB(A). This design helps provide a balance between cooling performance and operating noise.

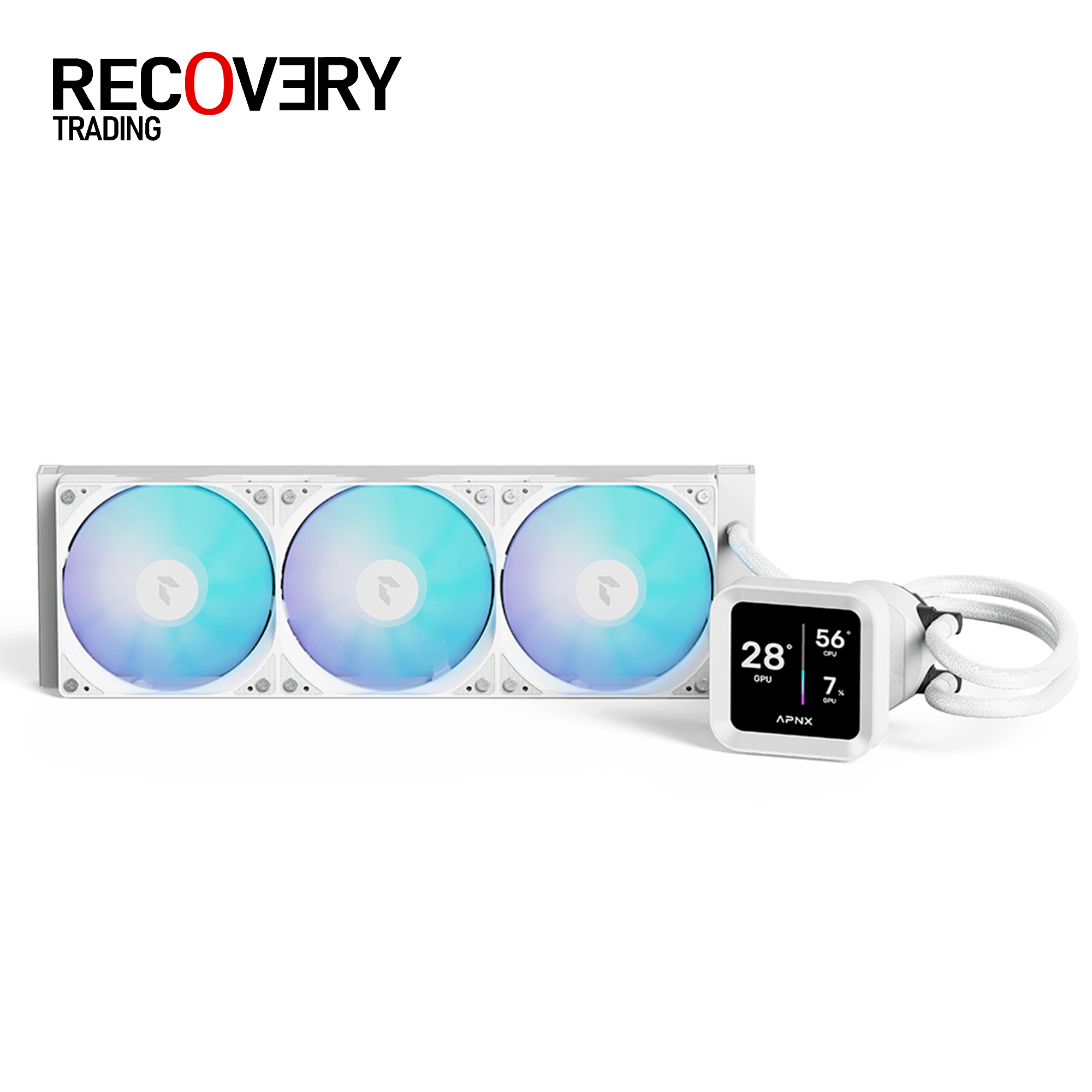

High-Performance ARGB Fan System

• Single-Frame 360mm Fan Design
• ARGB Lighting
• PWM 4-Pin Connection
• 600 – 1800 RPM Fan Speed
• Up to 81.5 CFM Airflow
• Up to 2.3 mmH2O Static Pressure
• Integrated Fan Frame

The APNX LC1-D 360 features a single-frame ARGB fan system designed to provide strong airflow through the radiator while simplifying installation.

The fan system operates between 600 and 1800 RPM and provides up to 81.5 CFM of airflow with maximum static pressure rated at 2.3 mmH2O.

In addition to cooling performance, integrated ARGB lighting provides customizable illumination for modern gaming setups. The white design also makes the cooler particularly suitable for white-themed PC builds.

Intel and AMD Socket Compatibility

Intel Compatibility:

• LGA1851
• LGA1700
• LGA1200
• LGA115X

AMD Compatibility:

• AM5
• AM4

The APNX LC1-D 360 supports modern Intel and AMD desktop platforms. This includes Intel LGA1851 and LGA1700 as well as AMD AM5 and AM4 sockets.

This wide compatibility makes the cooler suitable for many modern gaming and productivity PC configurations. Users should confirm that their PC case supports a 360mm radiator before installation.

Ideal For

• High-Performance Gaming PCs
• White Gaming PC Builds
• AMD AM5 Systems
• Intel LGA1851 Systems
• Intel LGA1700 Systems
• High-End Desktop Processors
• Content Creation PCs
• Video Editing Systems
• Rendering Workstations
• ARGB Gaming Setups
• LCD Display PC Builds
• Premium Custom Gaming PCs

Quick Technical Summary

Brand: APNX
Model: LC1-D 360 WH
Color: White
Cooler Type: AIO Liquid CPU Cooler
Radiator Size: 360mm
Radiator Dimensions: 394 x 120 x 27mm
Radiator Material: Corrosion-Resistant Aluminum Alloy
Water Block Material: Copper
TDP Rating: Up to 320W
LCD Size: 3.95 Inches
LCD Resolution: 480 x 480 Pixels
LCD Panel: IPS
LCD Brightness: 350 cd/m²
LCD Refresh Rate: 20Hz
Pump Speed: 600 – 3000 RPM ±10%
Pump Noise: 18 dB(A)
Pump Bearing: Ceramic Bearing
Fan Speed: 600 – 1800 RPM ±10%
Maximum Airflow: 81.5 CFM
Maximum Static Pressure: 2.3 mmH2O
Fan Connector: 4-Pin PWM
Intel Support: LGA1851 / LGA1700 / LGA1200 / LGA115X
AMD Support: AM5 / AM4
Primary Use: High-Performance Gaming and Productivity PCs
