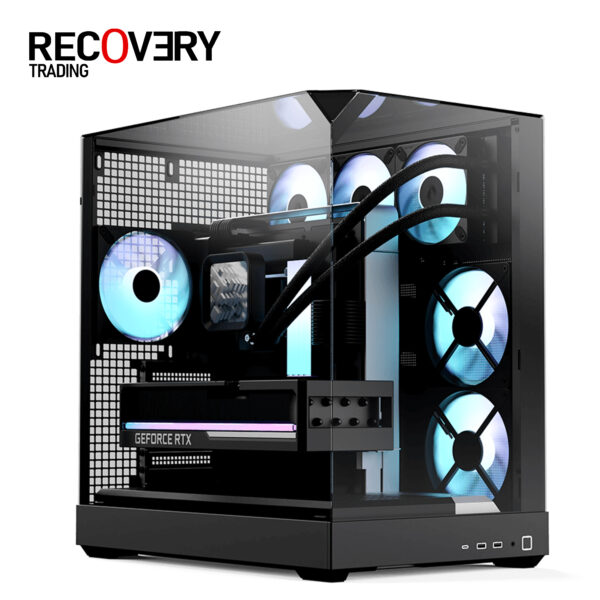

APNX V2 Black Mid-Tower Gaming Case

Overview

The APNX V2 Black is a premium Mid-Tower PC case designed for gamers and PC enthusiasts who want a spacious interior, extensive cooling support, and a modern showcase design. Its large 71-liter capacity provides plenty of room for high-performance hardware while maintaining a clean and organized internal layout.

The case supports ATX, Micro-ATX, and Mini-ITX motherboards. In addition, it can accommodate graphics cards up to 445mm long when no radiator is installed in the front-right position. CPU air coolers up to 183mm tall are also supported, making the V2 suitable for powerful gaming and productivity systems.

Cooling flexibility is one of the main strengths of the APNX V2. The chassis provides multiple mounting positions for 120mm and 140mm fans. It also supports 160mm fans at the bottom. Furthermore, users can install liquid cooling radiators up to 360mm in multiple locations.

The APNX V2 also features a built-in GPU support bracket, extensive cable management space, and flexible PSU and storage tray positioning. Overall, it provides a strong foundation for high-performance gaming PCs, custom water-cooled systems, and clean showcase builds.

Case – APNX V2 Black

• Mid-Tower Gaming Case
• Black Color
• 71L Internal Capacity
• SGCC Steel Construction
• 0.8mm Steel Thickness
• ATX Motherboard Support
• Micro-ATX Motherboard Support
• Mini-ITX Motherboard Support
• 7 Expansion Slots
• Built-In GPU Support Bracket
• Extensive Cable Management Space

The APNX V2 combines a spacious Mid-Tower design with flexible internal hardware support. Its large internal capacity makes it suitable for users building powerful systems with large graphics cards and advanced cooling configurations.

The chassis uses 0.8mm SGCC steel construction for structural durability. In addition, the built-in GPU support bracket helps prevent GPU sag when installing large and heavy graphics cards.

The case also provides 99mm of internal cable management depth. Therefore, users have plenty of space behind the main hardware area to organize power and data cables.

Cooling and Airflow

• Right-Front: Up to 3 x 120mm or 3 x 140mm Fans
• Right-Top: Up to 3 x 120mm Fans
• Bottom: Up to 3 x 120mm, 3 x 140mm, or 2 x 160mm Fans
• Rear: Up to 2 x 120mm or 1 x 140mm Fan
• Multiple Radiator Mounting Options
• Up to 360mm Radiator Support

The APNX V2 provides extensive cooling flexibility for high-performance gaming hardware. Users can create different airflow configurations using multiple fan mounting locations throughout the chassis.

For liquid cooling, the front-right position supports radiators ranging from 120mm up to 360mm. The right-top position also supports up to a 360mm radiator.

Furthermore, the bottom can accommodate radiators up to 360mm when the bottom fan filter is removed. A 120mm radiator can also be installed at the rear.

This extensive cooling support makes the V2 suitable for powerful processors and graphics cards that require efficient thermal management during demanding workloads.

Hardware Compatibility

• ATX Motherboards
• Micro-ATX Motherboards
• Mini-ITX Motherboards
• GPU Length Up to 445mm
• CPU Cooler Height Up to 183mm
• ATX Power Supply Support
• PSU Length Up to 270mm Including Cables
• 7 Expansion Slots

The APNX V2 provides excellent compatibility with modern PC hardware. Graphics cards up to 445mm long can be installed when no radiator is positioned in the front-right mounting area.

For air cooling, the chassis supports CPU coolers up to 183mm tall. This provides compatibility with many large tower-style CPU air coolers.

The case also supports ATX power supplies up to 270mm long, including cables. Therefore, users have flexibility when selecting a PSU for high-performance gaming configurations.

Storage Support

The APNX V2 provides flexible storage options for gaming and productivity systems.

Users can configure the chassis with one 3.5-inch drive and two 2.5-inch drives. Alternatively, the case can accommodate up to four 2.5-inch storage drives.

The PSU and HDD tray positions can also be swapped. This allows users to customize the internal layout according to their hardware configuration, cooling setup, and cable management requirements.

GPU Support and Cable Management

The APNX V2 includes a built-in GPU support bracket designed to reduce graphics card sag. This feature is particularly useful when installing large and heavy high-performance graphics cards.

The case also provides up to 99mm of internal cable management depth. This generous space helps users organize power cables and maintain a cleaner internal layout.

Furthermore, the customizable PSU and HDD tray positions provide additional flexibility. Users can adjust the internal configuration to improve airflow and cable routing based on their specific build.

Front I/O Connectivity

• 1 x USB 3.2 Gen 2×2 Type-C
• 2 x USB 3.2 Gen 1 Type-A
• HD Audio and Microphone

The APNX V2 provides modern front I/O connectivity for gaming peripherals, external storage devices, and other accessories.

The USB Type-C port provides high-speed connectivity for compatible devices. Meanwhile, two USB Type-A ports provide convenient access for traditional USB peripherals.

Ideal For

• High-Performance Gaming PCs
• Large Graphics Card Builds
• Custom PC Builds
• Liquid-Cooled Gaming Systems
• High-End CPU Air Cooling
• Content Creation Systems
• Streaming PCs
• Productivity Workstations
• Clean Cable Management Builds
• Showcase Gaming Systems

Quick Technical Summary

Brand: APNX
Model: V2
Model Number: APX-V2-BK-FRB
Case Type: Mid-Tower
Color: Black
Body Material: SGCC
Steel Thickness: 0.8mm
Capacity: 71L
Motherboard Support: ATX, Micro-ATX, Mini-ITX
Expansion Slots: 7
Maximum GPU Length: Up to 445mm
Maximum CPU Cooler Height: Up to 183mm
Maximum PSU Length: Up to 270mm Including Cables
Storage: Up to 1 x 3.5-Inch + 2 x 2.5-Inch or 4 x 2.5-Inch
Maximum Radiator Support: Up to 360mm
Cable Management Depth: 99mm
Dimensions: 466 x 309 x 500mm
Net Weight: 11.8kg
Front I/O: USB-C, 2 x USB-A, HD Audio and Microphone
Primary Use: Gaming, Content Creation, and High-Performance Custom PC Builds
