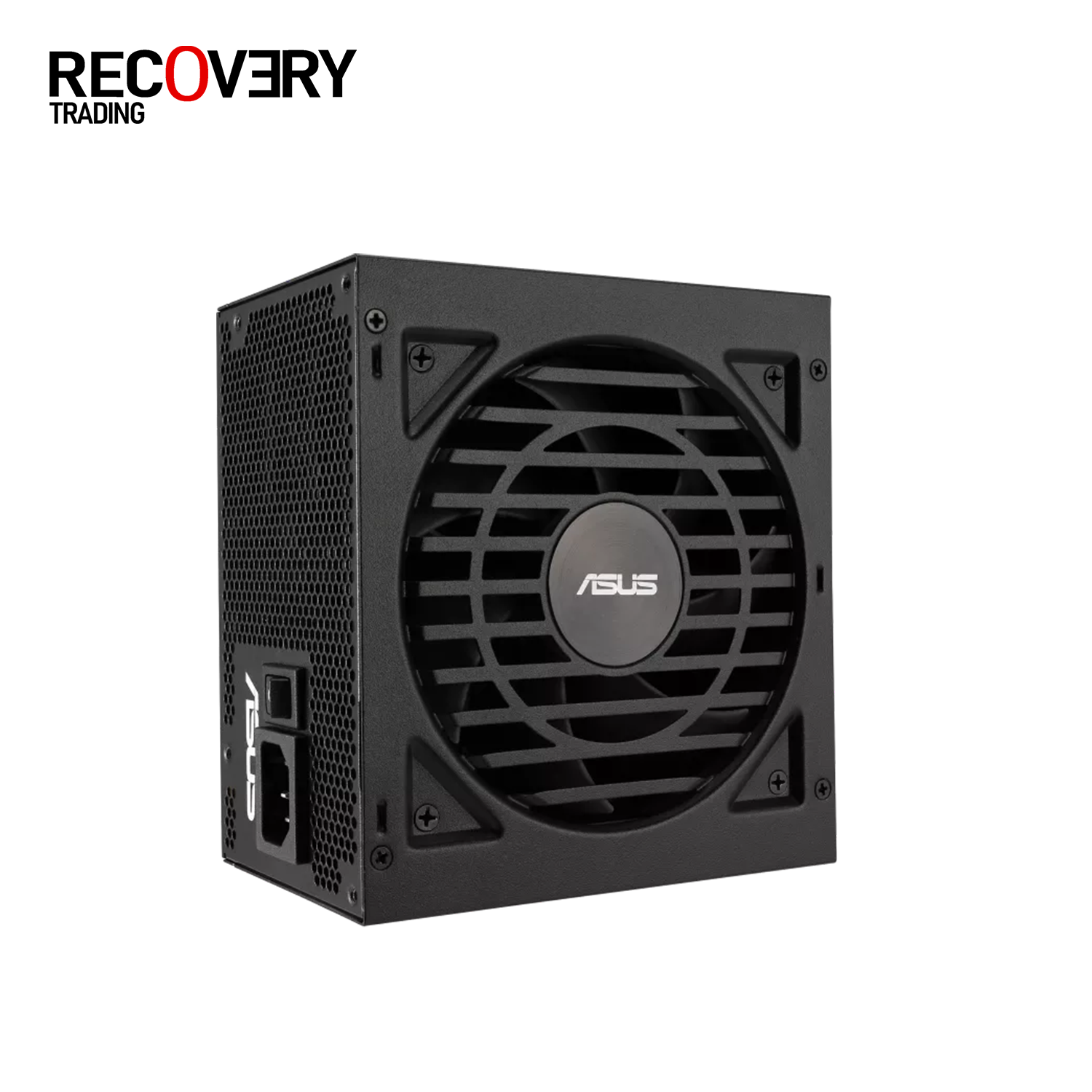

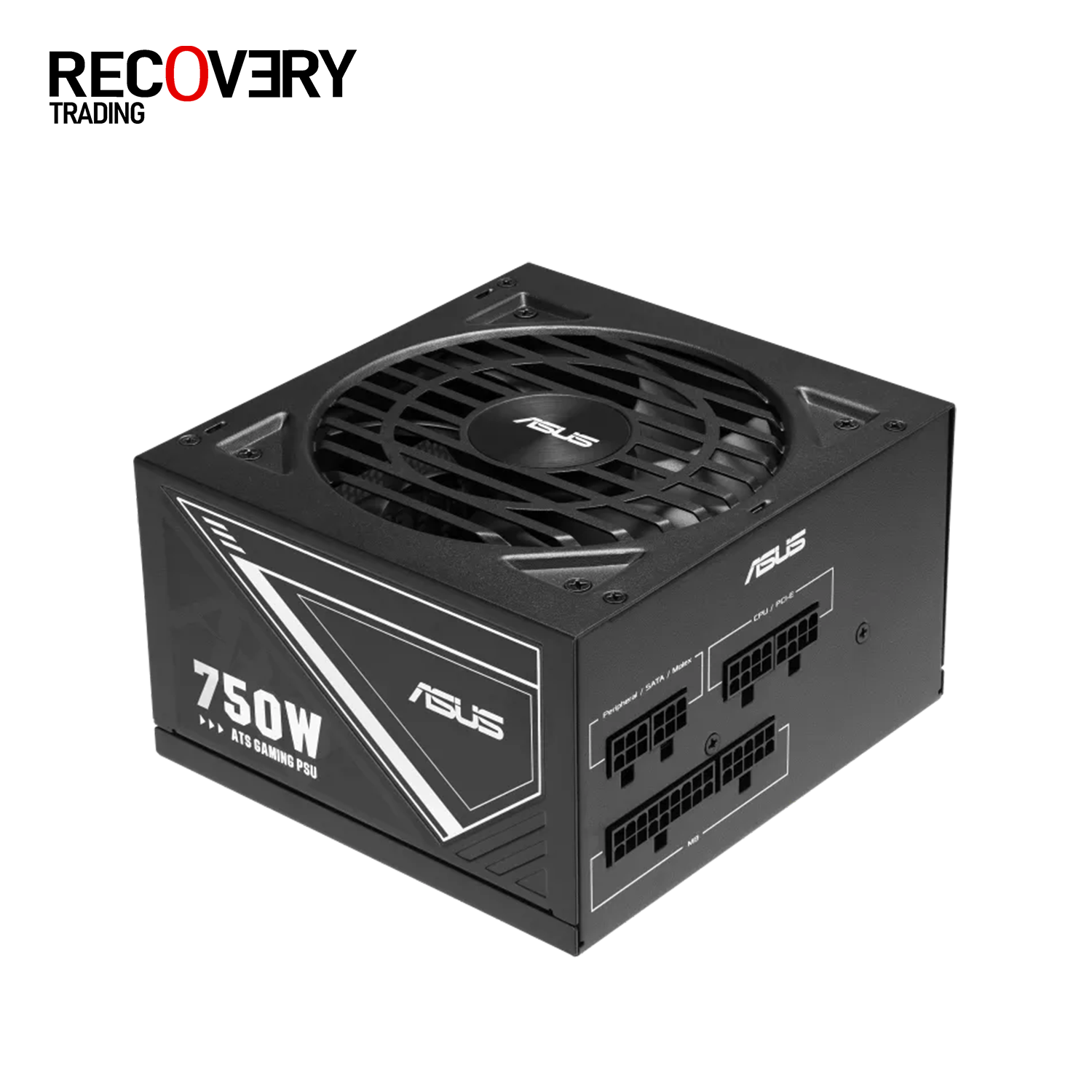

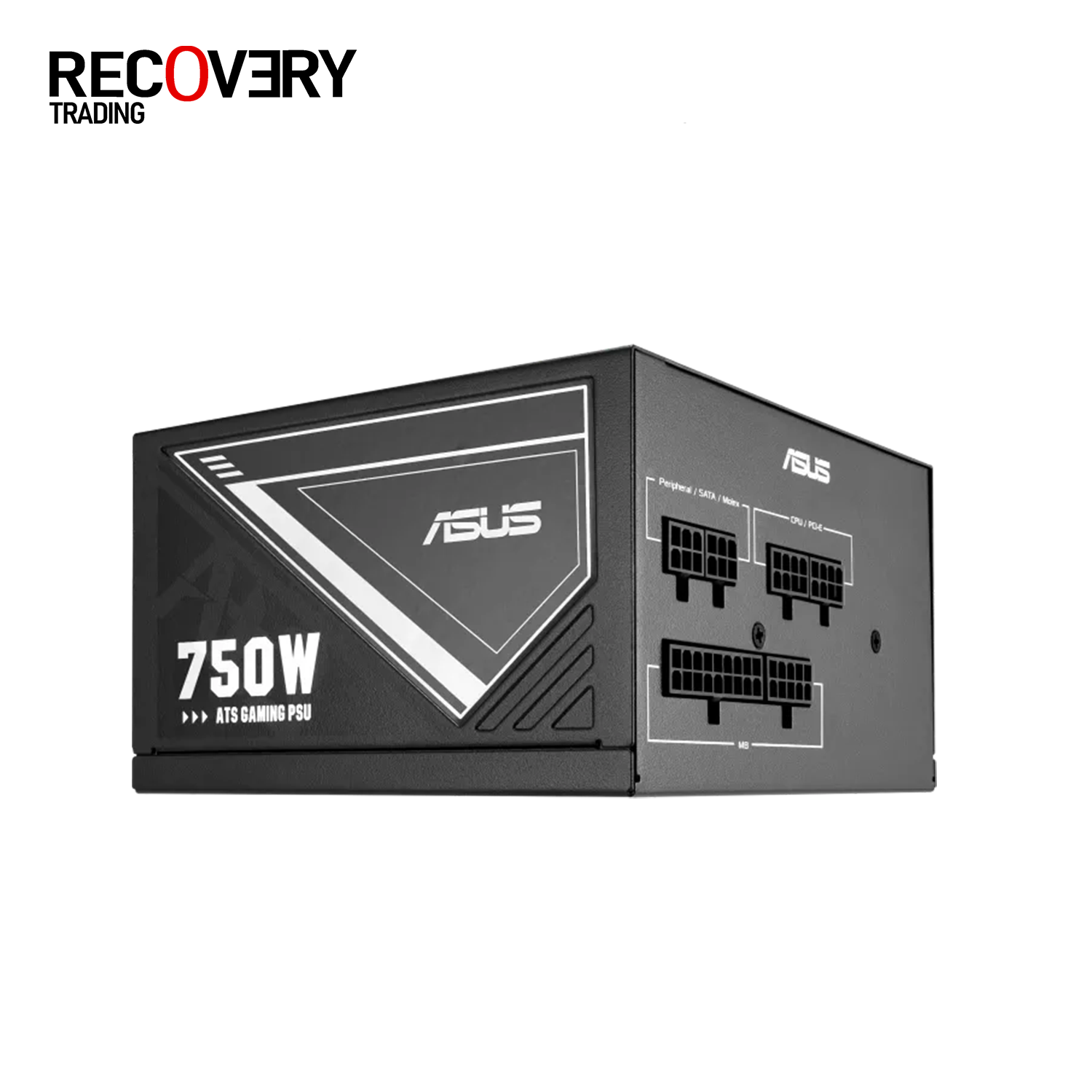

ASUS-ATS-750G – ASUS 750W ATS Gold Power Supply

Description

ASUS ATS

Overview

The ASUS ATS 750W Gold Power Supply is designed to deliver stable and efficient power for modern gaming and productivity systems. With 80 Plus Gold certification, Active PFC design, and industrial-grade protection mechanisms, this PSU ensures consistent performance under demanding loads.

Built for ATX systems, it supports modern CPUs and GPUs while maintaining high efficiency and long-term reliability.

Efficiency & Power Delivery

• Total Output Power: 750W

• Efficiency Rating: 80 Plus Gold

• PFC Type: Active PFC

• AC Input Range: 110–240V AC

The 80 Plus Gold certification ensures higher efficiency under typical loads, reducing wasted energy and lowering heat output. This makes it suitable for mid-to-high performance gaming builds.

Output Specifications

• +12V Rail: 62.5A (Primary rail for CPU & GPU)

• +3.3V Rail: 20A

• +5V Rail: 20A

• -12V Rail: 0.3A

• +5Vsb: 3A

Combined load capacity ensures stable voltage distribution across system components, especially under GPU-intensive workloads.

Protection Features

The PSU includes multiple safety protections:

• OPP (Over Power Protection)

• OVP (Over Voltage Protection)

• UVP (Under Voltage Protection)

• SCP (Short Circuit Protection)

• OCP (Over Current Protection)

• OTP (Over Temperature Protection)

These features help safeguard system components against electrical faults and unexpected power fluctuations.

Cooling & Reliability

• Fan Type: Dual Ball Bearing

• MTBF: >120,000 hours @ 25°C

• 0dB Technology: Not supported

The dual ball bearing fan design improves durability and longevity compared to sleeve-bearing fans. While it does not include 0dB silent mode, it is engineered for reliable thermal control.

Physical Specifications

• Form Factor: ATX12V

• Dimensions: 140 × 150 × 86 mm

• Weight: 1.529 kg

• Compliance: RoHS

Compact dimensions make it compatible with most standard ATX mid-tower cases.

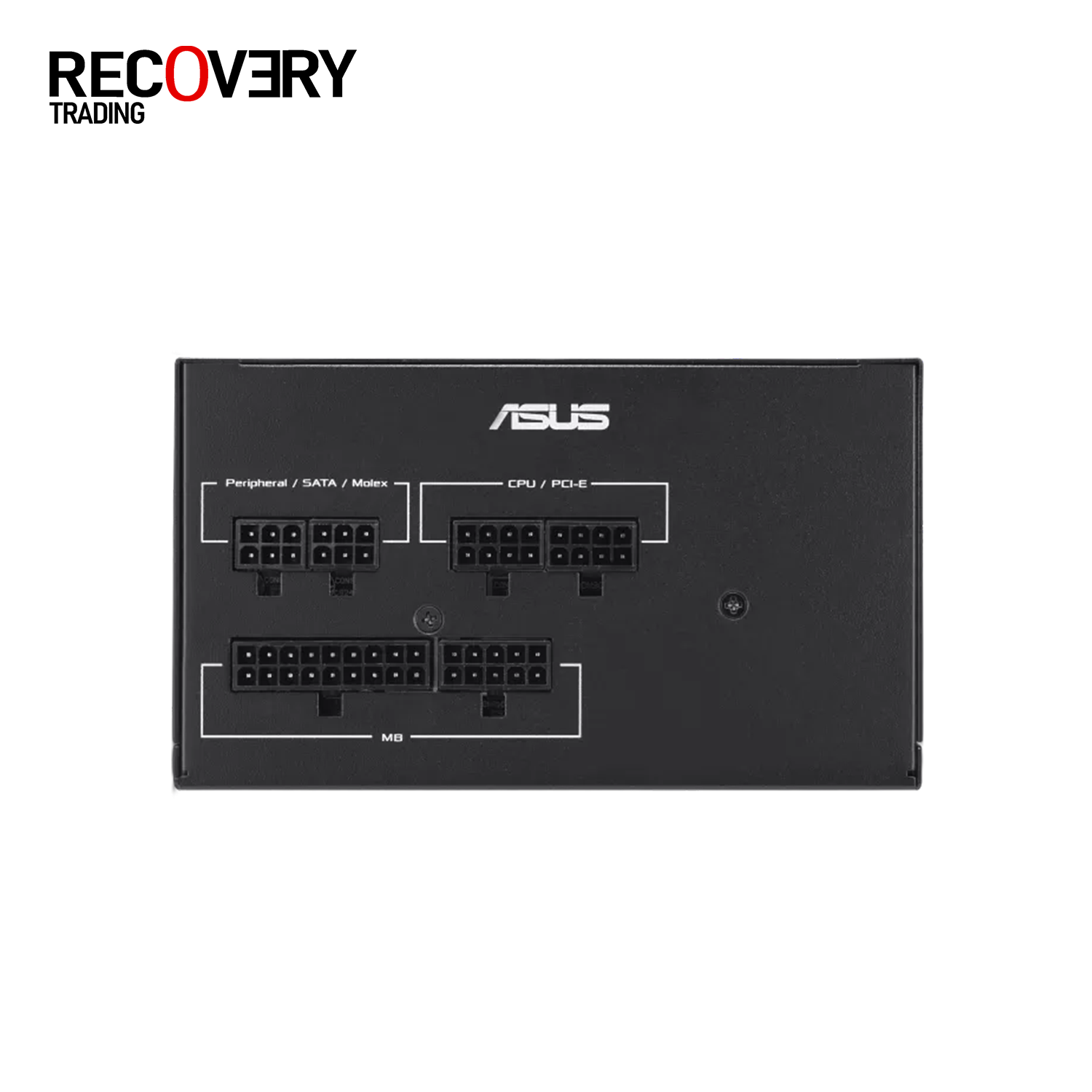

Cable & Connector Configuration

• 24/20-pin Motherboard ×1

• 4+4-pin CPU ×2

• PCIe 6+2-pin ×2

• SATA ×3

• Peripheral ×3

Included cables:

• Power Cord

• Motherboard Power Cable (550mm)

• CPU 1-to-2 Cable (650+100mm)

• PCIe 1-to-2 Cable (675+100mm)

• SATA 1-to-3 Cable

• Peripheral 1-to-3 Cables

• Mounting Screws

• Quick Start Guide

Connector availability supports modern gaming GPUs and multi-drive configurations.

Ideal For

• Mid to high-end gaming PCs

• RTX / RX GPU builds

• Content creation systems

• Users upgrading to 750W Gold efficiency

Quick Technical Summary

• Power Output: 750W

• Efficiency: 80 Plus Gold

• Form Factor: ATX12V

• Protection: OPP / OVP / UVP / SCP / OCP / OTP

• Fan: Dual Ball Bearing

• Best Use: Gaming & High-Performance Builds

A reliable and efficient 750W Gold-rated power supply designed for stable performance in modern PC systems.
