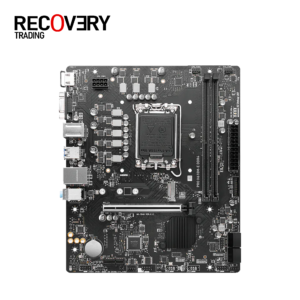

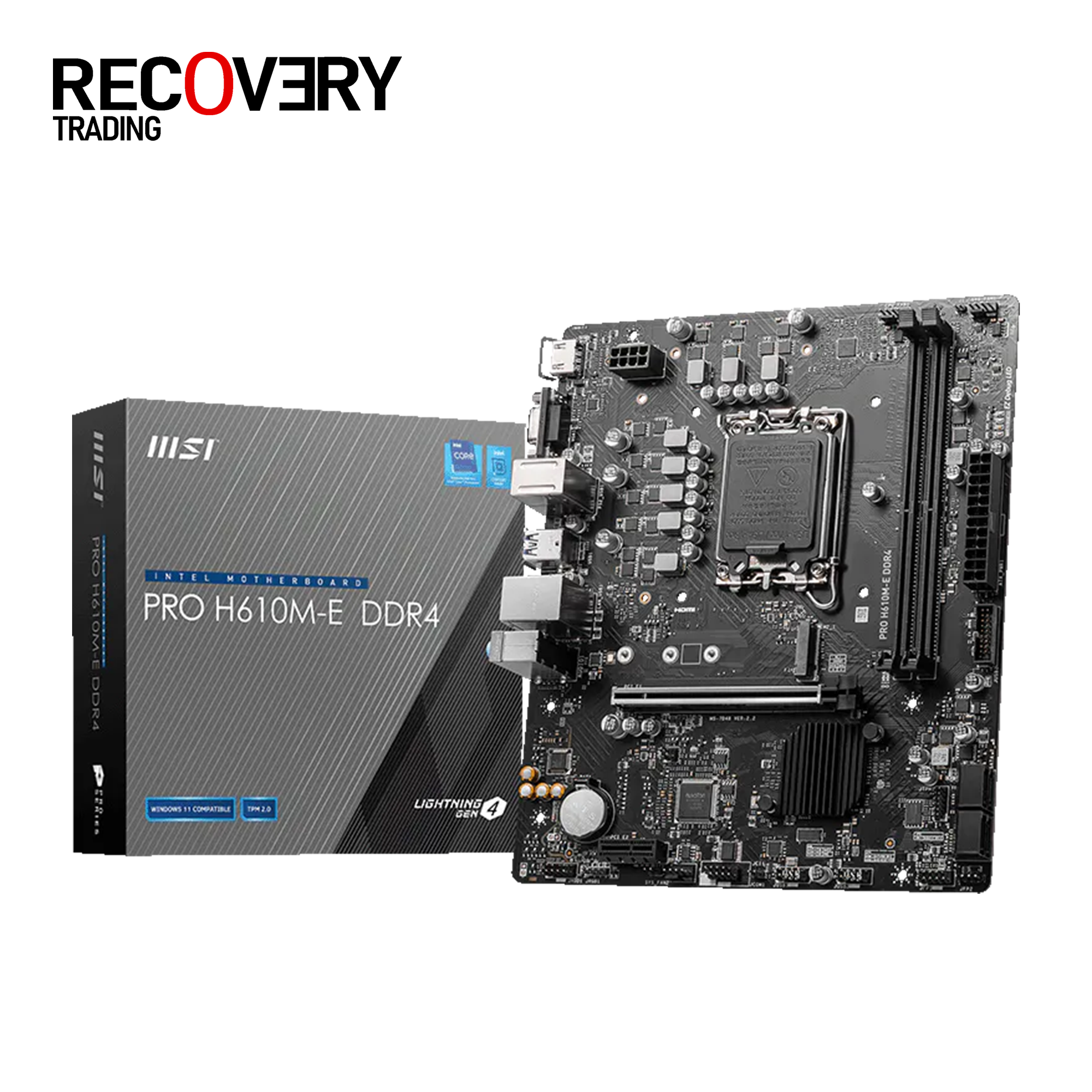

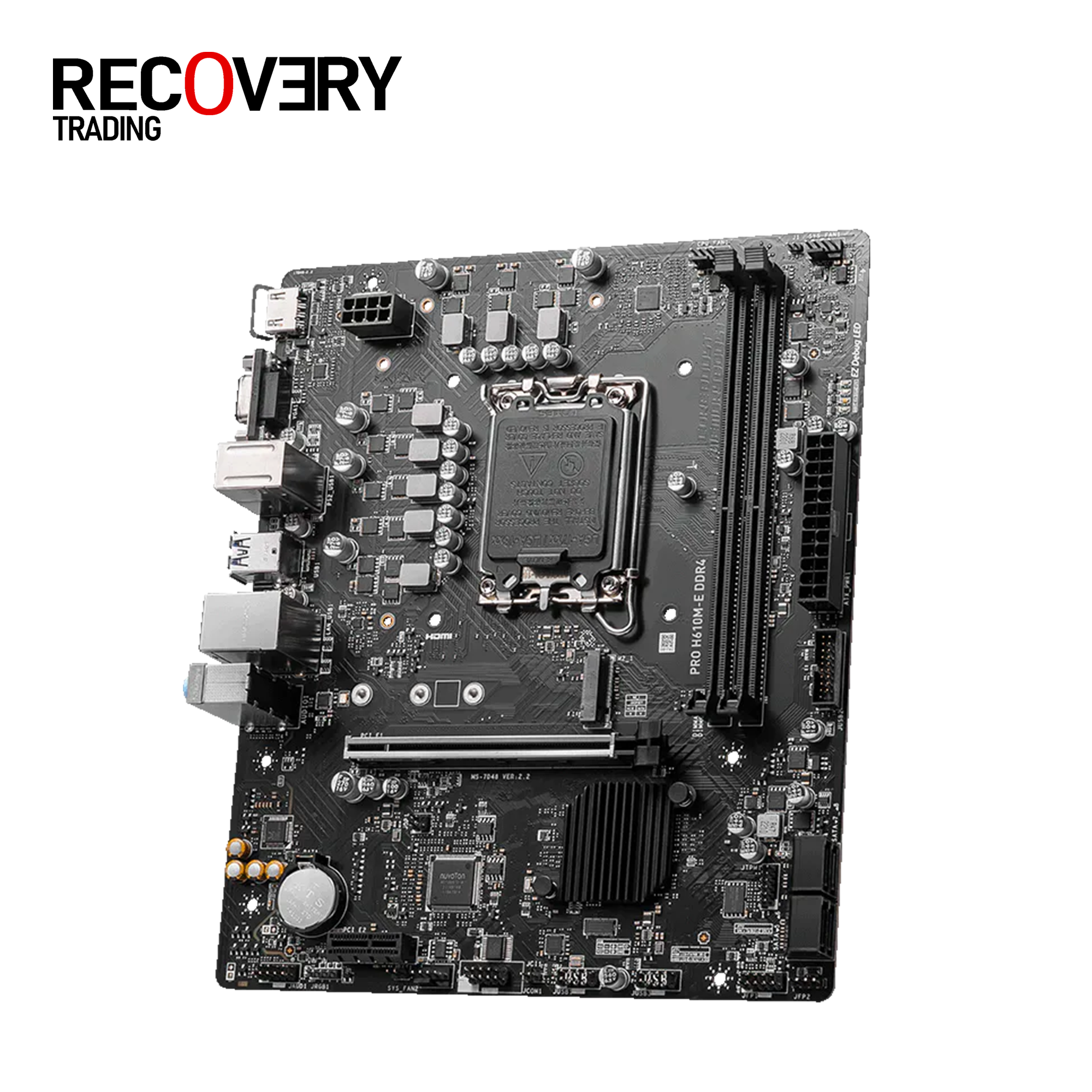

MSI PRO H610M-E DDR4 Motherboard

Overview

The MSI PRO H610M-E DDR4 is a compact Micro-ATX motherboard designed for Intel LGA1700 processors. Based on the Intel H610 chipset, it supports compatible 12th, 13th, and 14th Gen Intel Core processors, along with Pentium Gold and Celeron CPUs. It provides DDR4 memory support, PCIe 4.0 connectivity, an M.2 slot, and Gigabit LAN, making it suitable for affordable gaming and everyday desktop systems.

MSI H610M-E DDR4 Features

• Intel LGA1700 Socket
• Intel H610 Chipset
• Micro-ATX Form Factor
• 2 x DDR4 DIMM Slots
• Up to 64GB DDR4 Memory
• DDR4-3200 Support
• PCIe 4.0 x16 Slot
• PCIe 3.0 x1 Slot
• 1 x M.2 PCIe 3.0 x4
• 4 x SATA 6Gb/s
• Realtek Gigabit LAN
• Realtek ALC897 Audio
• HDMI and VGA Outputs
• EZ Debug LED
• MSI Core Boost Technology
• MSI Memory Boost Technology

MSI H610M-E DDR4 Memory & Storage

The motherboard supports dual-channel DDR4 memory with up to 64GB capacity and speeds up to DDR4-3200. For storage, it includes one M.2 slot supporting PCIe 3.0 x4 and four SATA 6Gb/s ports.

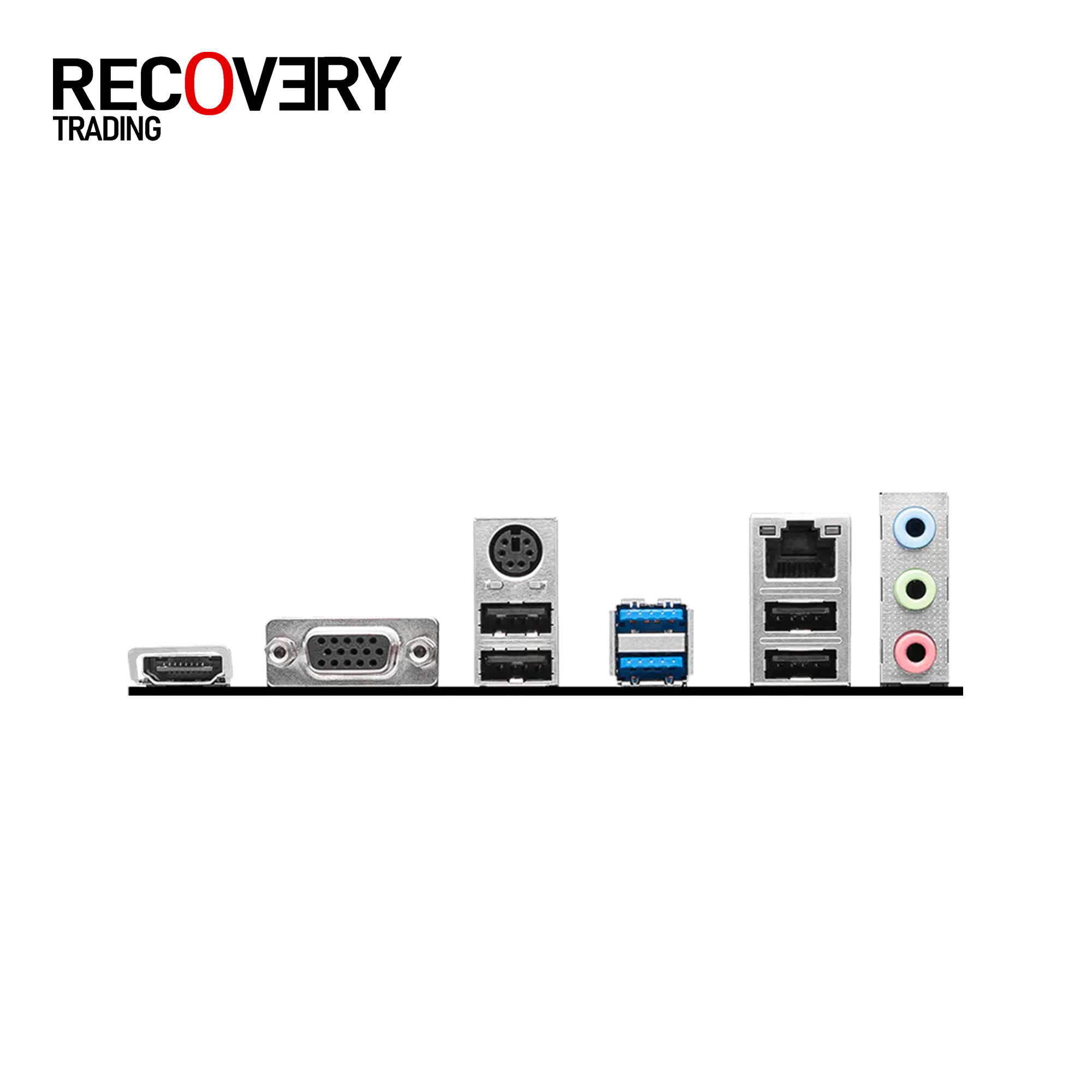

MSI H610M-E DDR4 Connectivity

The board provides practical connectivity for gaming and desktop systems, including USB 3.2 Gen 1 ports, Gigabit Ethernet, HDMI, VGA, and 7.1-channel audio. Its PCIe 4.0 x16 slot also supports modern dedicated graphics cards.

Perfect For

• Budget Gaming PCs
• Intel Gaming Builds
• Home & Office PCs
• Everyday Productivity
• Compact Micro-ATX Systems
• Entry-Level Workstations

Quick Technical Summary

Motherboard: MSI PRO H610M-E DDR4
Chipset: Intel H610
Socket: LGA1700
Form Factor: Micro-ATX
Memory: DDR4
Maximum Memory: 64GB
Expansion: PCIe 4.0 x16
Storage: 1 x M.2 + 4 x SATA 6Gb/s
LAN: Realtek Gigabit Ethernet
Audio: Realtek ALC897
Wireless: Not Included
