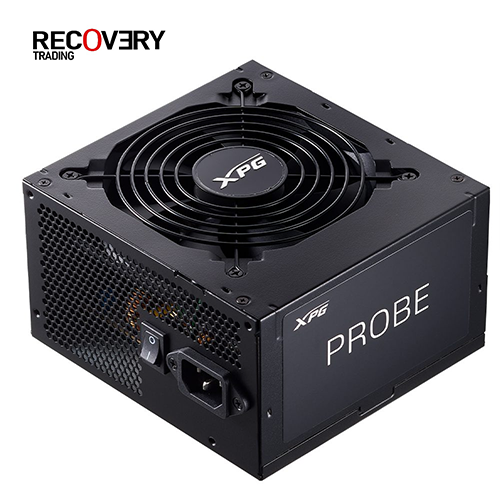

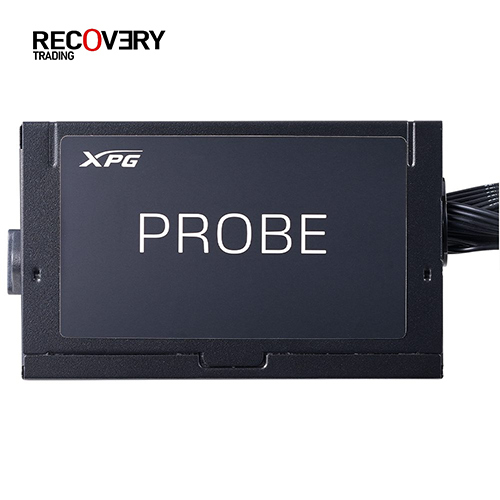

XPG PROBE 700W +80 BRONZE POWER SUPPLY

Description

XPG Dimensions (L x W x H)
140 x 150 x 86mm
80 Plus Rating
BRONZE
ATX Version
ATX 2.52
Protections
OVP / OPP / SCP / UVP / OTP / SIP
Certification
CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
PFC
> 0.99 @ Typical load
Input Voltage
100-240V, 47~63Hz
Input Current
9A – 10A
Input Frequency
47 – 63Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
700W: +5V: 17A, +3.3V:19A, +12V:54A, -12V:0.3A, +5Vsb:2.5A 600W: +5V: 17A, +3.3V:19A, +12V:46A, -12V:0.3A, +5Vsb:2.5A
Power Excursion
Total:700W +5V/+3.3V:110W, +12V:648W, -12V:3.6W, +5Vsb:12.5W Total:600W +5V/+3.3V:110W, +12V:552W, -12V:3.6W, +5Vsb:12.5W
Operating Temperature
0~40°C
Fan Size
120mm
Fan Bearing
Sleeve Bearing Fan
Fan Speed
2400 ± 10% RPM
MTBF
>100,000 hours @ 25°C
ATX 24 Pin Connector
1
EPS 8 (4+4) Pin Connector
2
Molex 4 Pin Connector
2
SATA Connector
5
Weight
700W:1526.6g, 600W:1480.1g
Warranty
3 years
